MD Series

RV system

12V | 55Vdc | 30A/50A
MD Series 30A/50A

Specifically designed for RV

Can be connected to both PV and alternator.Can charge both the leisure battery and the starter battery.

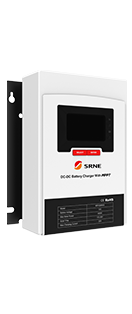

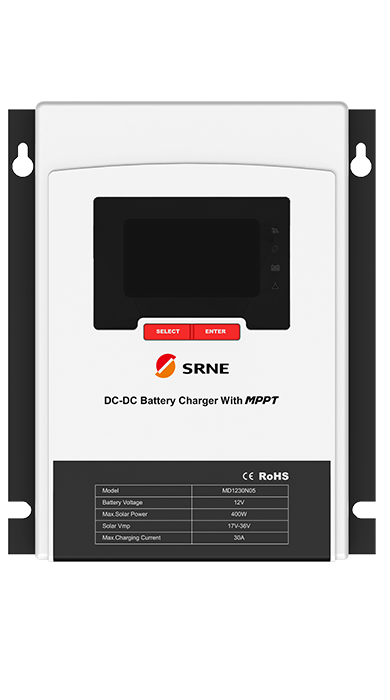

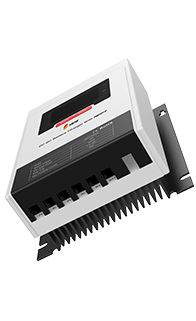

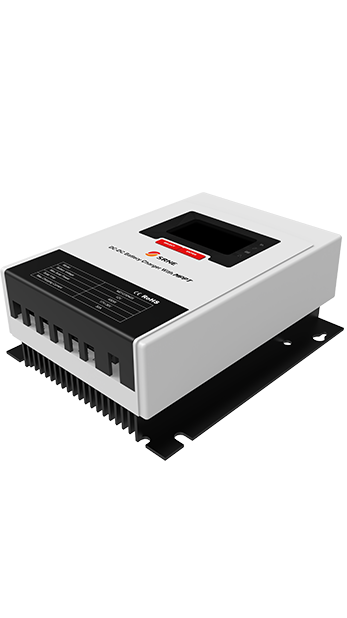

12V MPPT DC to DC Charger Controller

All-in-One

4 charging mode,be your reliable power steward.Helps you save space and wire.

User-Friendly

Easy to install and simple to use. Natural cooling, absolutely quiet.

Efficient

MPPT with up to 99.9% efficiency.Support 2 in series/2 in parallel connection.

Safety

360 degrees of security from hardware to software.

Intelligent

Supports TTL communication.

OVERVIEW

Model
MD1230N05
Max.Voltage of Open Circuit
55Vdc
MPPT Voltage Range
17~36Vdc
Max.PV Input Current
27A
Max.PV Input Power
400W
Rated Battery Voltage
12Vdc
Max.MPPT Charging Current
30A
Max.MPPT Charging Voltage
13.8V
Model
MD1250N05
Max.Voltage of Open Circuit
55Vdc
MPPT Voltage Range
17~36Vdc
Max.PV Input Current
45A
Max.PV Input Power
700W
Rated Battery Voltage
12Vdc
Max.MPPT Charging Current
50A
Max.MPPT Charging Voltage
13.8V
