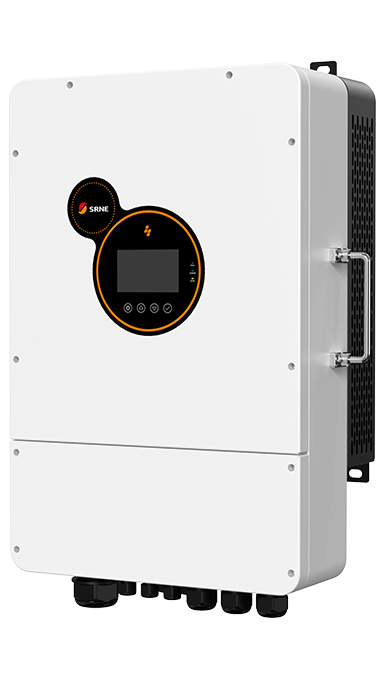

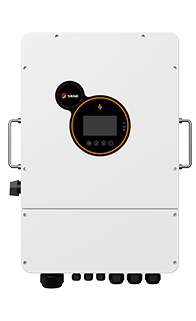

HES Series 12KW

Hybrid inverter

12KW | Single/Split Phase | 1/2 MPPTs
HES Series 12KW

Efficient

Advanced MPPT technologty with up to 99.9% efficiency.Up to 22A PV input current perfect for high power

Waterproof protection

IP65 protection degree for outside installation

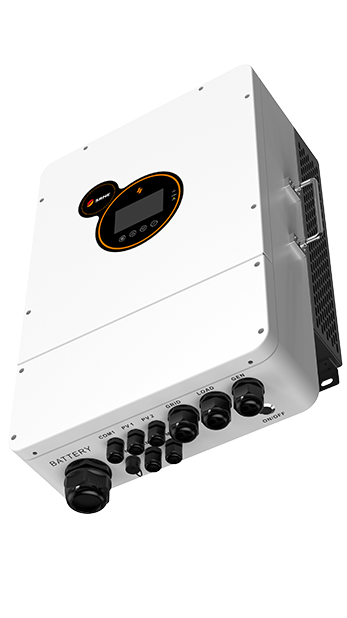

Convenient installation

Industrial design with a modern aesthetic look.Easy to install and simple to use

Safety

360 degrees of security from hardware to software.EU and North American safety approvals.

Intelligent

Exclusive Li-ion battery BMS dual activation.Time-slot function to save cost with peak-valley.

Communication

Support for Li-ion battery BMS communication.

OVERVIEW

Model
HES4880U200-H
Rated Output Power
8800W
Max.Peak Power
17,600VA
Rated Output Voltage
240Vac
Load Capacity of Motors
5HP
Rated AC Frequency
50Hz/60Hz
Num. of MPPT Trackers
2
Max.Voltage of Open Circuit
500Vdc+500Vdc
Model
HES48100U200-H
Rated Output Power
10000W
Max.Peak Power
20,000VA
Rated Output Voltage
240Vac
Load Capacity of Motors
6HP
Rated AC Frequency
50Hz/60Hz
Num. of MPPT Trackers
2
Max.Voltage of Open Circuit
500Vdc+500Vdc
Model
HES48120U200-H
Rated Output Power
12000W
Max.Peak Power
24,000VA
Rated Output Voltage
240Vac
Load Capacity of Motors
6HP
Rated AC Frequency
50Hz/60Hz
Num. of MPPT Trackers
2
Max.Voltage of Open Circuit
500Vdc+500Vdc
